High-Density Micro Distribution Cable is composed of two contrasting color bound bundles of 12 colored glass optical fibers, aramid yarn, and a PVDF outer jacket. High-Density Micro Distribution Cable is available in 12 TIA standard colors or special-order colors. UL Listed OFNP cables are available.
Standard surface print denotes construction, NEC rating and fiber type, and includes footage markers.
| Part Number | Type | Cable Rating | Fiber Count | Nominal Diameter (mm) |
|---|---|---|---|---|
FI-S09HD24CZNPY | SINGLEMODE OS2 (ITU-T G.657.A1) | OFNP | 24 | 2.95 |
FI-S09HD24CZNPY38 | SINGLEMODE OS2 (ITU-T G.657.A1) | OFNP | 24 | 3.80 |
FI-M62HD24C3NPO | 62.5/125 MULTIMODE OM1 | OFNP | 24 | 2.95 |
FI-M62HD24C3NPO38 | 62.5/125 MULTIMODE OM1 | OFNP | 24 | 3.80 |
FI-M50HD24CGNPA | 50/125 MULTIMODE OM3 | OFNP | 24 | 2.95 |
FI-M50HD24CGNPA38 | 50/125 MULTIMODE OM3 | OFNP | 24 | 3.80 |
FI-M50HD24C4NPA | 50/125 MULTIMODE OM4 | OFNP | 24 | 2.95 |
FI-M50HD24C4NPA38 | 50/125 MULTIMODE OM4 | OFNP | 24 | 3.80 |
FI-M50HD24C5NPLG | 50/125 MULTIMODE OM5 | OFNP | 24 | 2.95 |
FI-M50HD24C5NPLG38 | 50/125 MULTIMODE OM5 | OFNP | 24 | 3.80 |
FEATURES:
• 250μm colored bare fiber
• Small O.D. for tight spaces
• NFPA 262 (Plenum)
• Available in all fiber types
• Meets the application requirement of National Electric Code (NEC) Article 770
• Applications: Plenum, Data Centers
• Operating Temp: 0 to 70°C
• Storage Temp: -40°C to 70°C
Micro-Distribution cable combines high fiber counts with a compact, space saving design. 2 to 12 colored fibers with aramid yarn are positioned in a 3 mm buffer tube. 8 tubes of 12 fibers are combined to make cables up to 96 fibers.
Each subunit is numbered for ease of installation with OFNR & OFNP rated constructions available. Fanout Kits are a perfect match with Micro-Distribution.
| Part Number | Type | Application | Cable Rating | Fiber Count | Nominal Diameter (mm) |
|---|---|---|---|---|---|
FI -S09MD02CZNRY | SINGLEMODE OS2 (ITU-T G.657.A1) | RISER | OFNR | 2 | 2.95 |
FI-S09MD06CZNRY | SINGLEMODE OS2 (ITU-T G.657.A1) | RISER | OFNR | 6 | 2.95 |
FI-S09MD12CZNRY | SINGLEMODE OS2 (ITU-T G.657.A1) | RISER | OFNR | 12 | 2.95 |
FI-S09MD24CZNRY-Y | SINGLEMODE OS2 (ITU-T G.657.A1) | RISER | OFNR | 24 | 8.20 |
FI-S09MD36CZNRY-Y | SINGLEMODE OS2 (ITU-T G.657.A1) | RISER | OFNR | 36 | 8.25 |
FI-S09MD48CZNRY4T-Y | SINGLEMODE OS2 (ITU-T G.657.A1) | RISER | OFNR | 48 | 8.60 |
FI-S09MD72CZNRY6T-Y | SINGLEMODE OS2 (ITU-T G.657.A1) | RISER | OFNR | 72 | 10.50 |
FI-S09MD96CZNRY-Y | SINGLEMODE OS2 (ITU-T G.657.A1) | RISER | OFNR | 96 | 13.00 |
FI-S09MD02CZNPY | SINGLEMODE OS2 (ITU-T G.657.A1) | PLENUM | OFNP | 2 | 2.95 |
FI-S09MD06CZNPY | SINGLEMODE OS2 (ITU-T G.657.A1) | PLENUM | OFNP | 6 | 2.95 |
FI-S09MD06CZNPY | SINGLEMODE OS2 (ITU-T G.657.A1) | PLENUM | OFNP | 12 | 2.95 |
FI-S09MD24CZNPY-Y-TW | SINGLEMODE OS2 (ITU-T G.657.A1) | PLENUM | OFNP | 24 | 8.20 |
FI-S09MD36CZNPY3T-Y | SINGLEMODE OS2 (ITU-T G.657.A1) | PLENUM | OFNP | 36 | 8.25 |
FI-S09MD48CZNPY4T-Y | SINGLEMODE OS2 (ITU-T G.657.A1) | PLENUM | OFNP | 48 | 8.60 |
FI-S09MD72CZNPY6T-Y | SINGLEMODE OS2 (ITU-T G.657.A1) | PLENUM | OFNP | 72 | 10.50 |
FI-S09MD96CZNPY-Y | SINGLEMODE OS2 (ITU-T G.657.A1) | PLENUM | OFNP | 96 | 13.00 |
FI-M50MD02CGNRA | 50/125 MULTIMODE OM3 | RISER | OFNR | 2 | 2.95 |
FI-M50MD06CGNRA | 50/125 MULTIMODE OM3 | RISER | OFNR | 6 | 2.95 |
FI-M50MD12CGNRA | 50/125 MULTIMODE OM3 | RISER | OFNR | 12 | 2.95 |
FI-M50MD24CGNRA-A | 50/125 MULTIMODE OM3 | RISER | OFNR | 24 | 2.95 |
FI-M50MD36CGNRA3T-A | 50/125 MULTIMODE OM3 | RISER | OFNR | 36 | 8.25 |
FI-M50MD48CGNRA4T-A | 50/125 MULTIMODE OM3 | RISER | OFNR | 48 | 8.60 |
FI-M50MD72CGNRA6T-A | 50/125 MULTIMODE OM3 | RISER | OFNR | 72 | 10.50 |
FI-M50MD96CGNRA-A | 50/125 MULTIMODE OM3 | RISER | OFNR | 96 | 13.00 |
FI-M50MD02CGNPA | 50/125 MULTIMODE OM3 | PLENUM | OFNP | 2 | 2.95 |
FI-M50MD06CGNPA | 50/125 MULTIMODE OM3 | PLENUM | OFNP | 6 | 2.95 |
FI-M50MD12CGNPA | 50/125 MULTIMODE OM3 | PLENUM | OFNP | 12 | 2.95 |
FI-M50MD24CGNPA-A-TW | 50/125 MULTIMODE OM3 | PLENUM | OFNP | 24 | 8.20 |
FI-M50MD36CGNPA3T-A | 50/125 MULTIMODE OM3 | PLENUM | OFNP | 36 | 8.25 |
FI-M50MD48CGNPA4T-A | 50/125 MULTIMODE OM3 | PLENUM | OFNP | 48 | 8.60 |
FI-M50MD72CGNPA6T-A | 50/125 MULTIMODE OM3 | PLENUM | OFNP | 72 | 10.50 |
FI-M50MD96CGNPA-A | 50/125 MULTIMODE OM3 | PLENUM | OFNP | 96 | 13.0 |
FI-M50MD02C4NRA | 50/125 MULTIMODE OM4 | RISER | OFNR | 2 | 2.95 |
FI-M50MD06C4NRA | 50/125 MULTIMODE OM4 | RISER | OFNR | 6 | 2.95 |
FI-M50MD12C4NRA | 50/125 MULTIMODE OM4 | RISER | OFNR | 12 | 2.95 |
FI-M50MD24C4NRA-A | 50/125 MULTIMODE OM4 | RISER | OFNR | 24 | 8.20 |
FI-M50MD36C4NRA3T-A | 50/125 MULTIMODE OM4 | RISER | OFNR | 36 | 8.25 |
FI-M50MD48C4NRA4T-A | 50/125 MULTIMODE OM4 | RISER | OFNR | 48 | 8.60 |
FI-M50MD72C4NRA6T-A | 50/125 MULTIMODE OM4 | RISER | OFNR | 72 | 10.50 |
FI-M50MD96C4NRA-A | 50/125 MULTIMODE OM4 | RISER | OFNR | 96 | 13.00 |
FI-M50MD02C4NPA | 50/125 MULTIMODE OM4 | PLENUM | OFNP | 2 | 2.95 |
FI-M50MD06C4NPA | 50/125 MULTIMODE OM4 | PLENUM | OFNP | 6 | 2.95 |
FI-M50MD12C4NPA | 50/125 MULTIMODE OM4 | PLENUM | OFNP | 12 | 2.95 |
FI-M50MD24C4NPA-A-TW | 50/125 MULTIMODE OM4 | PLENUM | OFNP | 24 | 8.20 |
FI-M50MD36C4NPA3T-A | 50/125 MULTIMODE OM4 | PLENUM | OFNP | 36 | 8.25 |
FI-M50MD48C4NPA4T-A | 50/125 MULTIMODE OM4 | PLENUM | OFNP | 48 | 8.60 |
FI-M50MD72C4NPA6T-A | 50/125 MULTIMODE OM4 | PLENUM | OFNP | 72 | 10.50 |
FI-M50MD02C5NRLG | 50/125 MULTIMODE OM5 | RISER | OFNR | 2 | 2.95 |
FI-M50MD06C5NRLG | 50/125 MULTIMODE OM5 | RISER | OFNR | 6 | 2.95 |
FI-M50MD12C5NRLG | 50/125 MULTIMODE OM5 | RISER | OFNR | 12 | 2.95 |
FI-M50MD24C5NRLG-LG | 50/125 MULTIMODE OM5 | RISER | OFNR | 24 | 8.20 |
FI-M50MD36C5NRLG3T-LG | 50/125 MULTIMODE OM5 | RISER | OFNR | 36 | 8.25 |
FI-M50MD48C5NRLG4T-LG | 50/125 MULTIMODE OM5 | RISER | OFNR | 48 | 8.60 |
FI-M50MD72C5NRLG6T-LG | 50/125 MULTIMODE OM5 | RISER | OFNR | 72 | 10.50 |
FI-M50MD96C5NRLG-LG | 50/125 MULTIMODE OM5 | RISER | OFNR | 96 | 13.0 |
FI-M50MD02C5NPLG | 50/125 MULTIMODE OM5 | PLENUM | OFNP | 2 | 2.95 |
FI-M50MD06C5NPLG | 50/125 MULTIMODE OM5 | PLENUM | OFNP | 6 | 2.95 |
FI-M50MD12C5NPLG | 50/125 MULTIMODE OM5 | PLENUM | OFNP | 12 | 2.95 |
FI-M50MD24C5NPLG-LG-TW | 50/125 MULTIMODE OM5 | PLENUM | OFNP | 24 | 8.20 |
FI-M50MD36C5NPLG3T-LG | 50/125 MULTIMODE OM5 | PLENUM | OFNP | 36 | 8.25 |
FI-M50MD48C5NPLG4T-LG | 50/125 MULTIMODE OM5 | PLENUM | OFNP | 48 | 8.60 |
FI-M50MD72C5NPLG6T-LG | 50/125 MULTIMODE OM5 | PLENUM | OFNP | 72 | 10.50 |
FI-M50MD96C5NPLG-LG | 50/125 MULTIMODE OM5 | PLENUM | OFNP | 96 | 13.00 |
FEATURES:
• 250μm colored bare fibers
• Small O.D. for tight spaces
• UL 1666(Riser) and NFPA 262(Plenum)
• Available in all fiber types
• Meets the application requirement of National Electric Code (NEC) Article 770
• Applications: Data Centers, Ready for MTP connectors, High density Installations, Ready to ribbonize
• OFNP Operating Temp: 0 to 70°C
• OFNR Operating Temp -20°C to 70°C
• OM1 and OM2 Available upon request
• Optical fibers compliant with ITU-T G.657.A/B standards
In comparison to the Micro-distribution cables with 3mm subunits (previous page), the Micro-distribution with 2mm subs offers even more space saving constructions. The smaller subunit (2mm) design allows for up to a 30% smaller footprint. Available with up to 12 subunits containing up to 12 color coded bare fibers, we offer up to 288 fiber products for all data center applications.
Micro-distribution with 2mm subunits is offered in OFNP constructions only.
| Part Number | Type | Application | Cable Rating | Fiber Count | Nominal Diameter (mm) |
|---|---|---|---|---|---|
|
FI-S09MD02CZNPY20 |
SINGLEMODE OS2 (ITU-T G.657.A1)
|
PLENUM |
OFNP | 2 | 2.0 |
|
FI-S09MD12CZNPY20 |
SINGLEMODE OS2 (ITU-T G.657.A1) | PLENUM | OFNP | 12 | 2.0 |
|
FI-S09MD24CZNPY20-Y |
SINGLEMODE OS2 (ITU-T G.657.A1) | PLENUM | OFNP | 24 | 6.3 |
|
FI-S09MD36CZNPY20-Y |
SINGLEMODE OS2 (ITU-T G.657.A1) | PLENUM | OFNP | 36 | 6.3 |
|
FI-S09MD48CZNPY20-Y |
SINGLEMODE OS2 (ITU-T G.657.A1) | PLENUM | OFNP | 48 | 6.6 |
|
FI-S09MD72CZNPY20-Y |
SINGLEMODE OS2 (ITU-T G.657.A1) | PLENUM | OFNP | 72 | 8.0 |
|
FI-S09MD96CZNPY20-Y |
SINGLEMODE OS2 (ITU-T G.657.A1) | PLENUM | OFNP | 96 | 9.3 |
|
FI-S09MD144CZNPY20-Y |
SINGLEMODE OS2 (ITU-T G.657.A1) | PLENUM | OFNP | 144 | 10.6 |
|
FI-S09MD288CZNPY20-Y |
SINGLEMODE OS2 (ITU-T G.657.A1) | PLENUM | OFNP | 288 | 14.3 |
|
FI-S09MD12CZNPY20-DJ |
DOUBLE JACKET SINGLEMODE OS2 (ITU-T G.657.A1) | PLENUM | OFNP | 2 | 4.0 |
|
FI-M50MD02CGNPA20 |
50/125 MULTIMODE OM3 | PLENUM | OFNP | 2 | 2.0 |
|
FI-M50MD12CGNPA20 |
50/125 MULTIMODE OM3 | PLENUM | OFNP | 12 | 2.0 |
|
FI-M50MD24CGNPA20-A |
50/125 MULTIMODE OM3 | PLENUM | OFNP | 24 | 6.3 |
|
FI-M50MD36CGNPA20-A |
50/125 MULTIMODE OM3 | PLENUM | OFNP | 36 | 6.3 |
|
FI-M50MD48CGNPA20-A |
50/125 MULTIMODE OM3 | PLENUM | OFNP | 48 | 6.6 |
|
FI-M50MD72CGNPA20-A |
50/125 MULTIMODE OM3 | PLENUM | OFNP | 72 | 8.0 |
|
FI-M50MD96CGNPA20-A |
50/125 MULTIMODE OM3 | PLENUM | OFNP | 96 | 9.3 |
|
FI-M50MD144CGNPA20-A |
50/125 MULTIMODE OM3 | PLENUM | OFNP | 144 | 10.6 |
|
FI-M50MD288CGNPA20-A |
50/125 MULTIMODE OM3 | PLENUM | OFNP | 288 | 14.3 |
|
FI-M50MD12CGNPA20-DJ |
DOUBLE JACKET 50/125 MULTIMODE OM3 | PLENUM | OFNP | 2 | 4.0 |
|
FI-M50MD02C4NPA20 |
50/125 MULTIMODE OM4 | PLENUM | OFNP | 2 | 2.0 |
|
FI-M50MD12C4NPA20 |
50/125 MULTIMODE OM4 | PLENUM | OFNP | 12 | 2.0 |
|
FI-M50MD24C4NPA20-A |
50/125 MULTIMODE OM4 | PLENUM | OFNP | 24 | 6.3 |
|
FI-M50MD36C4NPA20-A |
50/125 MULTIMODE OM4 | PLENUM | OFNP | 36 | 6.3 |
|
FI-M50MD48C4NPA20-A |
50/125 MULTIMODE OM4 | PLENUM | OFNP | 48 | 6.6 |
|
FI-M50MD72C4NPA20-A |
50/125 MULTIMODE OM4 | PLENUM | OFNP | 72 | 8.0 |
|
FI-M50MD96C4NPA20-A |
50/125 MULTIMODE OM4 | PLENUM | OFNP | 96 | 9.3 |
|
FI-M50MD144C4NPA20-A |
50/125 MULTIMODE OM4 | PLENUM | OFNP | 144 | 10.6 |
|
FI-M50MD288C4NPA20-A |
50/125 MULTIMODE OM4 | PLENUM | OFNP | 288 | 14.3 |
|
FI-M50MD12C4NPA20-DJ |
DOUBLE JACKET 50/125 MULTIMODE OM4 | PLENUM | OFNP | 2 | 4.0 |
|
FI-M50MD02C5NPLG20 |
50/125 MULTIMODE OM5 | PLENUM | OFNP | 2 | 2.0 |
|
FI-M50MD12C5NPLG20 |
50/125 MULTIMODE OM5 | PLENUM | OFNP | 12 | 2.0 |
|
FI-M50MD24C5NPLG20-LG |
50/125 MULTIMODE OM5 | PLENUM | OFNP | 24 | 6.3 |
|
FI-M50MD36C5NPLG20-LG |
50/125 MULTIMODE OM5 | PLENUM | OFNP | 36 | 6.3 |
|
FI-M50MD48C5NPLG20-LG |
50/125 MULTIMODE OM5 | PLENUM | OFNP | 48 | 6.6 |
|
FI-M50MD72C5NPLG20-LG |
50/125 MULTIMODE OM5 | PLENUM | OFNP | 72 | 8.0 |
|
FI-M50MD96C5NPLG20-LG |
50/125 MULTIMODE OM5 | PLENUM | OFNP | 96 | 9.3 |
|
FI-M50MD144C5NPLG20-LG |
50/125 MULTIMODE OM5 | PLENUM | OFNP | 144 | 10.6 |
|
FI-M50MD288C5NPLG20-LG |
50/125 MULTIMODE OM5 | PLENUM | OFNP | 288 | 14.3 |
|
FI-M50MD12C5NPLG20-DJ |
DOUBLE JACKET 50/125 MULTIMODE OM5 | PLENUM | OFNP | 2 | 4.0 |
FEATURES:
• Ultra space saving designs
• 250μm color coded bare fiber
• 12 bare fibers per subunit up to 288 fiber constructions
• Available in all fiber types
• Meets the application requirement of National Electric Code (NEC) Article 770 and are OFNP rated
• Applications: Data Centers, Plenum spaces, Air Blown Installations
• OFNP Operating Temp: 0 to 70°C
• OM1/OM2 Also available
• Optical fibers compliant with ITU-T G.657.A/B standards
Indoor/Outdoor Loose Tube cable has no gel to complicate the termination process. The Dry Loose Tube technology and UV resistant black jacket allow for general outside applications. OFNR and OFNP rated constructions provide the flexibility to be deployed indoors without code constraints.
Color coded inner tubes each containing 2 to 12 colored bare fibers allow for easy identification.
| Part Number | Type | Application | Cable Rating | Fiber Count | Nominal Diameter (mm) |
|---|---|---|---|---|---|
| FI-S09DL02CZNRBL25 | SINGLEMODE OS2 (ITU-T G.657.A1) | RISER | OFNR | 2 | 4.8 |
FI-S09DL06CZNRBL25 | SINGLEMODE OS2 (ITU-T G.657.A1) | RISER | OFNR | 6 | 4.8 |
FI-S09DL12CZNRBL25 | SINGLEMODE OS2 (ITU-T G.657.A1) | RISER | OFNR | 12 | 4.8 |
FI-S09DL24CZNRBL25 | SINGLEMODE OS2 (ITU-T G.657.A1) | RISER | OFNR | 24 | 8.5 |
FI-S09DL36CZNRBL25 | SINGLEMODE OS2 (ITU-T G.657.A1) | RISER | OFNR | 36 | 8.5 |
FI-S09DL48CZNRBL25 | SINGLEMODE OS2 (ITU-T G.657.A1) | RISER | OFNR | 48 | 8.5 |
FI-S09DL72CZNRBL25 | SINGLEMODE OS2 (ITU-T G.657.A1) | RISER | OFNR | 72 | 10.4 |
FI-S09DL96CZNRBL25 | SINGLEMODE OS2 (ITU-T G.657.A1) | RISER | OFNR | 96 | 12.0 |
FI-S09DL144CZNRBL25 | SINGLEMODE OS2 (ITU-T G.657.A1) | RISER | OFNR | 144 | 13.0 |
FI-S09DL02CZNPBL25 | SINGLEMODE OS2 (ITU-T G.657.A1) | PLENUM | OFNP | 2 | 4.8 |
FI-S09DL06CZNPBL25 | SINGLEMODE OS2 (ITU-T G.657.A1) | PLENUM | OFNP | 6 | 4.8 |
FI-S09DL12CZNPBL25 | SINGLEMODE OS2 (ITU-T G.657.A1) | PLENUM | OFNP | 12 | 4.8 |
FI-S09DL24CZNPBL25 | SINGLEMODE OS2 (ITU-T G.657.A1) | PLENUM | OFNP | 24 | 8.5 |
FI-S09DL36CZNPBL25 | SINGLEMODE OS2 (ITU-T G.657.A1) | PLENUM | OFNP | 36 | 8.5 |
FI-S09DL48CZNPBL25 | SINGLEMODE OS2 (ITU-T G.657.A1) | PLENUM | OFNP | 48 | 8.5 |
FI-S09DL72CZNPBL25 | SINGLEMODE OS2 (ITU-T G.657.A1) | PLENUM | OFNP | 72 | 10.4 |
FI-S09DL96CZNPBL25 | SINGLEMODE OS2 (ITU-T G.657.A1) | PLENUM | OFNP | 96 | 12.0 |
FI-S09DL144CZNPBL25 | SINGLEMODE OS2 (ITU-T G.657.A1) | PLENUM | OFNP | 144 | 13.0 |
FI-M62DL02C3NRBL25 | 62.5/125 MULTIMODE OM1 | RISER | OFNR | 2 | 4.8 |
FI-M62DL06C3NRBL25 | 62.5/125 MULTIMODE OM1 | RISER | OFNR | 6 | 4.8 |
FI-M62DL12C3NRBL25 | 62.5/125 MULTIMODE OM1 | RISER | OFNR | 12 | 4.8 |
FI-M62DL24C3NRBL25 | 62.5/125 MULTIMODE OM1 | RISER | OFNR | 24 | 8.5 |
| FI-M62DL36C3NRBL25 | 62.5/125 MULTIMODE OM1 | RISER | OFNR | 36 | 8.5 |
FI-M62DL48C3NRBL25 | 62.5/125 MULTIMODE OM1 | RISER | OFNR | 48 | 8.5 |
| FI-M62DL72C3NRBL25 | 62.5/125 MULTIMODE OM1 | RISER | OFNR | 72 | 10.4 |
FI-M62DL96C3NRBL25 | 62.5/125 MULTIMODE OM1 | RISER | OFNR | 96 | 12.0 |
FI-M62DL144C3NRBL25 | 62.5/125 MULTIMODE OM1 | RISER | OFNR | 144 | 13.0 |
FI-M62DL02C3NPBL25 | 62.5/125 MULTIMODE OM1 | PLENUM | OFNP | 2 | 4.8 |
FI-M62DL06C3NPBL25 | 62.5/125 MULTIMODE OM1 | PLENUM | OFNP | 6 | 4.8 |
FI-M62DL12C3NPBL25 | 62.5/125 MULTIMODE OM1 | PLENUM | OFNP | 12 | 4.8 |
FI-M62DL24C3NPBL25 | 62.5/125 MULTIMODE OM1 | PLENUM | OFNP | 24 | 8.5 |
FI-M62DL36C3NPBL25 | 62.5/125 MULTIMODE OM1 | PLENUM | OFNP | 36 | 8.5 |
FI-M62DL48C3NPBL25 | 62.5/125 MULTIMODE OM1 | PLENUM | OFNP | 48 | 8.5 |
FI-M62DL72C3NPBL25 | 62.5/125 MULTIMODE OM1 | PLENUM | OFNP | 72 | 10.4 |
| FI-M62DL96C3NPBL25 | 62.5/125 MULTIMODE OM1 | PLENUM | OFNP | 96 | 12.0 |
FI-M62DL144C3NPBL25 | 62.5/125 MULTIMODE OM1 | PLENUM | OFNP | 144 | 13.0 |
FI-M50DL02CGNRBL25 | 50/125 MULTIMODE OM3 | RISER | OFNR | 2 | 4.8 |
FI-M50DL06CGNRBL25 | 50/125 MULTIMODE OM3 | RISER | OFNR | 6 | 4.8 |
FI-M50DL12CGNRBL25 | 50/125 MULTIMODE OM3 | RISER | OFNR | 12 | 4.8 |
FI-M50DL24CGNRBL25 | 50/125 MULTIMODE OM3 | RISER | OFNR | 24 | 8.5 |
FI-M50DL36CGNRBL25 | 50/125 MULTIMODE OM3 | RISER | OFNR | 36 | 8.5 |
FI-M50DL48CGNRBL25 | 50/125 MULTIMODE OM3 | RISER | OFNR | 48 | 8.5 |
FI-M50DL72CGNRBL25 | 50/125 MULTIMODE OM3 | RISER | OFNR | 72 | 10.4 |
FI-M50DL96CGNRBL25 | 50/125 MULTIMODE OM3 | RISER | OFNR | 96 | 12.0 |
FI-M50DL144CGNRBL25 | 50/125 MULTIMODE OM3 | RISER | OFNR | 144 | 13.0 |
FI-M50DL02CGNPBL25 | 50/125 MULTIMODE OM3 | PLENUM | OFNP | 2 | 4.8 |
FI-M50DL06CGNPBL25 | 50/125 MULTIMODE OM3 | PLENUM | OFNP | 6 | 4.8 |
FI-M50DL12CGNPBL25 | 50/125 MULTIMODE OM3 | PLENUM | OFNP | 12 | 4.8 |
FI-M50DL24CGNPBL25 | 50/125 MULTIMODE OM3 | PLENUM | OFNP | 24 | 8.5 |
FI-M50DL36CGNPBL25 | 50/125 MULTIMODE OM3 | PLENUM | OFNP | 36 | 8.5 |
FI-M50DL48CGNPBL25 | 50/125 MULTIMODE OM3 | PLENUM | OFNP | 48 | 8.5 |
| FI-M50DL72CGNPBL25 | 50/125 MULTIMODE OM3 | PLENUM | OFNP | 72 | 10.4 |
FI-M50DL96CGNPBL25 | 50/125 MULTIMODE OM3 | PLENUM | OFNP | 96 | 12.0 |
FI-M50DL144CGNPBL25 | 50/125 MULTIMODE OM3 | PLENUM | OFNP | 144 | 13.0 |
FI-M50DL02C4NRBL25 | 50/125 MULTIMODE OM4 | RISER | OFNR | 2 | 4.8 |
FI-M50DL06C4NRBL25 | 50/125 MULTIMODE OM4 | RISER | OFNR | 6 | 4.8 |
FI-M50DL12C4NRBL25 | 50/125 MULTIMODE OM4 | RISER | OFNR | 12 | 4.8 |
FI-M50DL24C4NRBL25 | 50/125 MULTIMODE OM4 | RISER | OFNR | 24 | 8.5 |
FI-M50DL36C4NRBL25 | 50/125 MULTIMODE OM4 | RISER | OFNR | 36 | 8.5 |
FI-M50DL48C4NRBL25 | 50/125 MULTIMODE OM4 | RISER | OFNR | 48 | 8.5 |
FI-M50DL72C4NRBL25 | 50/125 MULTIMODE OM4 | RISER | OFNR | 72 | 10.4 |
FI-M50DL96C4NRBL25 | 50/125 MULTIMODE OM4 | RISER | OFNR | 96 | 12.0 |
FI-M50DL144C4NRBL25 | 50/125 MULTIMODE OM4 | RISER | OFNR | 144 | 13.0 |
FI-M50DL02C4NPBL25 | 50/125 MULTIMODE OM4 | PLENUM | OFNP | 2 | 4.8 |
FI-M50DL06C4NPBL25 | 50/125 MULTIMODE OM4 | PLENUM | OFNP | 6 | 4.8 |
FI-M50DL12C4NPBL25 | 50/125 MULTIMODE OM4 | PLENUM | OFNP | 12 | 4.8 |
FI-M50DL24C4NPBL25 | 50/125 MULTIMODE OM4 | PLENUM | OFNP | 24 | 8.5 |
FI-M50DL36C4NPBL25 | 50/125 MULTIMODE OM4 | PLENUM | OFNP | 36 | 8.5 |
FI-M50DL48C4NPBL25 | 50/125 MULTIMODE OM4 | PLENUM | OFNP | 48 | 8.5 |
FI-M50DL72C4NPBL25 | 50/125 MULTIMODE OM4 | PLENUM | OFNP | 72 | 10.4 |
FI-M50DL96C4NPBL25 | 50/125 MULTIMODE OM4 | PLENUM | OFNP | 96 | 12.0 |
FI-M50DL144C4NPBL25 | 50/125 MULTIMODE OM4 | PLENUM | OFNP | 144 | 13.0 |
FEATURES:
• Gel-Free water blocked design
• UV protected rugged jacket
• 2 thru 144 fiber count
• Available in all fiber types
• Applications: Riser, Duct, Plenum
• OFNP AND OFNR Operating and Storage Temp: -40°C to 70°C
• 50/125 MULTIMODE, ClearCurve® OM2/OM5 Also available
• Optical fibers compliant with ITU-T G.657.A/B standards
Distribution Cables are designed for general indoor use. Available in all fiber types, a thick durable jacket offers excellent strength and protection during installations and restorations. The 900μm color coded tight buffers allow for easy identification and termination.
Cables are available in OFNR and OFNP rated constructions and also a LSZH jacket.
| Part Number | Type | Application | Cable Rating | Fiber Count | Nominal Diameter (mm) |
|---|---|---|---|---|---|
| FI-S09DI02CZNRY44 | SINGLEMODE OS2 (ITU-T G.657.A1) | RISER | OFNR | 2 | 4.4 |
FI-S09DI04CZNRY44 | SINGLEMODE OS2 (ITU-T G.657.A1) | RISER | OFNR | 4 | 4.4 |
FI-S09DI06CZNRY48 | SINGLEMODE OS2 (ITU-T G.657.A1) | RISER | OFNR | 6 | 4.8 |
FI-S09DI08CZNRY58 | SINGLEMODE OS2 (ITU-T G.657.A1) | RISER | OFNR | 8 | 5.8 |
FI-S09DI12CZNRY58 | SINGLEMODE OS2 (ITU-T G.657.A1) | RISER | OFNR | 12 | 5.8 |
FI-S09DI24CZNRY78 | SINGLEMODE OS2 (ITU-T G.657.A1) | RISER | OFNR | 24 | 7.8 |
FI-S09DI48CZNRY-Y | SINGLEMODE OS2 (ITU-T G.657.A1) | RISER | OFNR | 48 | 15.4 |
FI-S09DI72CZNRY-Y | SINGLEMODE OS2 (ITU-T G.657.A1) | RISER | OFNR | 72 | 20.0 |
FI-S09DI96CZNRY-Y | SINGLEMODE OS2 (ITU-T G.657.A1) | RISER | OFNR | 96 | 22.9 |
FI-S09DI144CZNRY-Y | SINGLEMODE OS2 (ITU-T G.657.A1) | RISER | OFNR | 144 | 25.1 |
FI-S09DI02CZNPY44 | SINGLEMODE OS2 (ITU-T G.657.A1) | PLENUM | OFNP | 2 | 4.4 |
FI-S09DI04CZNPY44 | SINGLEMODE OS2 (ITU-T G.657.A1) | PLENUM | OFNP | 4 | 4.4 |
FI-S09DI06CZNPY48 | SINGLEMODE OS2 (ITU-T G.657.A1) | PLENUM | OFNP | 6 | 4.8 |
FI-S09DI08CZNPY58 | SINGLEMODE OS2 (ITU-T G.657.A1) | PLENUM | OFNP | 8 | 5.8 |
FI-S09DI12CZNPY58 | SINGLEMODE OS2 (ITU-T G.657.A1) | PLENUM | OFNP | 12 | 5.8 |
FI-S09DI24CZNPY78 | SINGLEMODE OS2 (ITU-T G.657.A1) | PLENUM | OFNP | 24 | 7.8 |
FI-S09DI48CZNPY-Y | SINGLEMODE OS2 (ITU-T G.657.A1) | PLENUM | OFNP | 48 | 15.4 |
FI-S09DI72CZNPY-Y | SINGLEMODE OS2 (ITU-T G.657.A1) | PLENUM | OFNP | 72 | 20.0 |
FI-S09DI96CZNPY-Y | SINGLEMODE OS2 (ITU-T G.657.A1) | PLENUM | OFNP | 96 | 22.9 |
FI-M62DI02C3NRO44 | 62.5/125 MULTIMODE OM1 | RISER | OFNR | 2 | 4.4 |
FI-M62DI04C3NRO44 | 62.5/125 MULTIMODE OM1 | RISER | OFNR | 4 | 4.4 |
FI-M62DI06C3NRO48 | 62.5/125 MULTIMODE OM1 | RISER | OFNR | 6 | 4.8 |
| FI-M62DI08C3NRO58 | 62.5/125 MULTIMODE OM1 | RISER | OFNR | 8 | 5.8 |
FI-M62DI12C3NRO58 | 62.5/125 MULTIMODE OM1 | RISER | OFNR | 12 | 5.8 |
| FI-M62DI24C3NRO78 | 62.5/125 MULTIMODE OM1 | RISER | OFNR | 24 | 7.8 |
FI-M62DI48C3NRO-O | 62.5/125 MULTIMODE OM1 | RISER | OFNR | 48 | 15.4 |
FI-M62DI72C3NRO-O | 62.5/125 MULTIMODE OM1 | RISER | OFNR | 72 | 20.0 |
FI-M62DI96C3NRO-O | 62.5/125 MULTIMODE OM1 | RISER | OFNR | 96 | 22.9 |
FI-M62DI144C3NRO-O | 62.5/125 MULTIMODE OM1 | RISER | OFNR | 144 | 25.1 |
FI-M62DI02C3NPO44 | 62.5/125 MULTIMODE OM1 | PLENUM | OFNP | 2 | 4.4 |
FI-M62DI04C3NPO44 | 62.5/125 MULTIMODE OM1 | PLENUM | OFNP | 4 | 4.4 |
FI-M62DI06C3NPO48 | 62.5/125 MULTIMODE OM1 | PLENUM | OFNP | 6 | 4.8 |
FI-M62DI08C3NPO58 | 62.5/125 MULTIMODE OM1 | PLENUM | OFNP | 8 | 5.8 |
FI-M62DI12C3NPO58 | 62.5/125 MULTIMODE OM1 | PLENUM | OFNP | 12 | 5.8 |
| FI-M62DI24C3NPO78 | 62.5/125 MULTIMODE OM1 | PLENUM | OFNP | 24 | 7.8 |
FI-M62DI48C3NPO-O | 62.5/125 MULTIMODE OM1 | PLENUM | OFNP | 48 | 15.4 |
FI-M62DI72C3NPO-O | 62.5/125 MULTIMODE OM1 | PLENUM | OFNP | 72 | 20.0 |
FI-M62DI96C3NPO-O | 62.5/125 MULTIMODE OM1 | PLENUM | OFNP | 96 | 22.9 |
FI-M50DI02CGNRA44 | 50/125 MULTIMODE OM3 | RISER | OFNR | 2 | 4.4 |
FI-M50DI04CGNRA44 | 50/125 MULTIMODE OM3 | RISER | OFNR | 4 | 4.4 |
FI-M50DI06CGNRA48 | 50/125 MULTIMODE OM3 | RISER | OFNR | 6 | 4.8 |
FI-M50DI08CGNRA58A | 50/125 MULTIMODE OM3 | RISER | OFNR | 8 | 5.8 |
FI-M50DI12CGNRA58 | 50/125 MULTIMODE OM3 | RISER | OFNR | 12 | 5.8 |
FI-M50DI24CGNRA78 | 50/125 MULTIMODE OM3 | RISER | OFNR | 24 | 7.8 |
FI-M50DI48CGNRA-A | 50/125 MULTIMODE OM3 | RISER | OFNR | 48 | 15.4 |
FI-M50DI72CGNRA-A | 50/125 MULTIMODE OM3 | RISER | OFNR | 72 | 20.0 |
FI-M50DI96CGNRA-A | 50/125 MULTIMODE OM3 | RISER | OFNR | 96 | 22.9 |
FI-M50DI144CGNRA-A | 50/125 MULTIMODE OM3 | RISER | OFNR | 144 | 25.1 |
FI-M50DI02CGNPA44 | 50/125 MULTIMODE OM3 | PLENUM | OFNP | 2 | 4.4 |
FI-M50DI04CGNPA44 | 50/125 MULTIMODE OM3 | PLENUM | OFNP | 4 | 4.4 |
FI-M50DI06CGNPA48 | 50/125 MULTIMODE OM3 | PLENUM | OFNP | 6 | 4.8 |
| FI-M50DI08CGNPA58 | 50/125 MULTIMODE OM3 | PLENUM | OFNP | 8 | 5.8 |
FI-M50DI12CGNPA58 | 50/125 MULTIMODE OM3 | PLENUM | OFNP | 12 | 5.8 |
FI-M50DI24CGNPA78 | 50/125 MULTIMODE OM3 | PLENUM | OFNP | 24 | 7.8 |
FI-M50DI48CGNPA-A | 50/125 MULTIMODE OM3 | PLENUM | OFNP | 48 | 15.4 |
FI-M50DI72CGNPA-A | 50/125 MULTIMODE OM3 | PLENUM | OFNP | 72 | 20.0 |
| FI-M50DI96CGNPA-A | 50/125 MULTIMODE OM3 | PLENUM | OFNP | 96 | 22.9 |
| FI-M50DI02C4NRA44 | 50/125 MULTIMODE OM4 | RISER | OFNR | 2 | 4.4 |
| FI-M50DI04C4NRA44 | 50/125 MULTIMODE OM4 | RISER | OFNR | 4 | 4.4 |
| FI-M50DI06C4NRA48 | 50/125 MULTIMODE OM4 | RISER | OFNR | 6 | 4.8 |
| FI-M50DI08C4NRA58 | 50/125 MULTIMODE OM4 | RISER | OFNR | 8 | 5.8 |
| FI-M50DI12C4NRA58 | 50/125 MULTIMODE OM4 | RISER | OFNR | 12 | 5.8 |
| FI-M50DI24C4NRA78 | 50/125 MULTIMODE OM4 | RISER | OFNR | 24 | 7.8 |
| FI-M50DI48C4NRA-A | 50/125 MULTIMODE OM4 | RISER | OFNR | 48 | 15.4 |
| FI-M50DI72C4NRA-A | 50/125 MULTIMODE OM4 | RISER | OFNR | 72 | 20.0 |
| FI-M50DI96C4NRA-A | 50/125 MULTIMODE OM4 | RISER | OFNR | 96 | 22.9 |
| FI-M50DI144C4NRA-A | 50/125 MULTIMODE OM4 | RISER | OFNR | 144 | 25.1 |
| FI-M50DI02C4NPA44 | 50/125 MULTIMODE OM4 | PLENUM | OFNP | 2 | 4.4 |
| FI-M50DI04C4NPA44 | 50/125 MULTIMODE OM4 | PLENUM | OFNP | 4 | 4.4 |
| FI-M50DI06C4NPA48 | 50/125 MULTIMODE OM4 | PLENUM | OFNP | 6 | 4.8 |
| FI-M50DI08C4NPA58 | 50/125 MULTIMODE OM4 | PLENUM | OFNP | 8 | 5.8 |
| FI-M50DI12C4NPA58 | 50/125 MULTIMODE OM4 | PLENUM | OFNP | 12 | 5.8 |
| FI-M50DI24C4NPA78 | 50/125 MULTIMODE OM4 | PLENUM | OFNP | 24 | 7.8 |
| FI-M50DI48C4NPA-A | 50/125 MULTIMODE OM4 | PLENUM | OFNP | 48 | 15.4 |
| FI-M50DI72C4NPA-A | 50/125 MULTIMODE OM4 | PLENUM | OFNP | 72 | 20.0 |
| FI-M50DI96C4NPA-A | 50/125 MULTIMODE OM4 | PLENUM | OFNP | 96 | 22.9 |
FEATURES:
• 900μm Tight Buffers
• Aramid Yarn Strength Members
• OFNR and OFNP rated construction
• Exclusive use of Corning® optical fibers
• Jacket print ensures product identification and fiber compatibility
• Buffers strip consistently, helpful for onsite termination
• Durable jacket offers added protection during installation and in rugged use applications
• Applications: Riser, Plenum, General indoor applications, Trunk cable between floors, Data centers
• OFNP Operating Temp: 0°C to 70°C, OFNR Operating Temp: -20°C to 70°C
• Also available: 50/125 MULTIMODE ClearCurve® OM2/OM5, Optical fibers compliant with ITU-T G.657.A/B standards
A UV resistant jacket available in OFNR or OFNP constructions allow indoor/outdoor cables to be used for general indoor applications without fire code constraints while have the flexibility for outdoor deployment.
Constructions consist of 900μm color coded tight buffers and water blocking aramid yarn.
| Part Number | Type | Application | Cable Rating | Fiber Count | Nominal Diameter (mm) |
|---|---|---|---|---|---|
| FI-S09IO02CZNRBL44 | SINGLEMODE OS2 (ITU-T G.657.A1) | RISER | OFNR | 2 | 4.4 |
FI-S09IO04CZNRBL44 | SINGLEMODE OS2 (ITU-T G.657.A1) | RISER | OFNR | 4 | 4.4 |
FI-S09IO06CZNRBL48 | SINGLEMODE OS2 (ITU-T G.657.A1) | RISER | OFNR | 6 | 4.8 |
FI-S09IO08CZNRBL58 | SINGLEMODE OS2 (ITU-T G.657.A1) | RISER | OFNR | 8 | 5.8 |
FI-S09IO12CZNRBL58 | SINGLEMODE OS2 (ITU-T G.657.A1) | RISER | OFNR | 12 | 5.8 |
FI-S09IO24CZNRBL78 | SINGLEMODE OS2 (ITU-T G.657.A1) | RISER | OFNR | 24 | 7.8 |
FI -S09IO48CZNRBL | SINGLEMODE OS2 (ITU-T G.657.A1) | RISER | OFNR | 48 | 15.4 |
FI-S09IO72CZNRBL | SINGLEMODE OS2 (ITU-T G.657.A1) | RISER | OFNR | 72 | 20.0 |
FI-S09IO96CZNRBL | SINGLEMODE OS2 (ITU-T G.657.A1) | RISER | OFNR | 96 | 22.9 |
FI-S09IO144CZNRBL | SINGLEMODE OS2 (ITU-T G.657.A1) | RISER | OFNR | 144 | 25.1 |
FI-S09IO02CZNPBL44 | SINGLEMODE OS2 (ITU-T G.657.A1) | PLENUM | OFNP | 2 | 4.4 |
FI-S09IO04CZNPBL44 | SINGLEMODE OS2 (ITU-T G.657.A1) | PLENUM | OFNP | 4 | 4.4 |
FI-S09IO06CZNPBL48 | SINGLEMODE OS2 (ITU-T G.657.A1) | PLENUM | OFNP | 6 | 4.8 |
FI-S09IO08CZNPBL58 | SINGLEMODE OS2 (ITU-T G.657.A1) | PLENUM | OFNP | 8 | 5.8 |
FI-S09IO12CZNPBL58 | SINGLEMODE OS2 (ITU-T G.657.A1) | PLENUM | OFNP | 12 | 5.8 |
FI-S09IO24CZNPBL78 | SINGLEMODE OS2 (ITU-T G.657.A1) | PLENUM | OFNP | 24 | 7.8 |
FI-S09IO48CZNPBL | SINGLEMODE OS2 (ITU-T G.657.A1) | PLENUM | OFNP | 48 | 15.4 |
FI-S09IO72CZNPBL | SINGLEMODE OS2 (ITU-T G.657.A1) | PLENUM | OFNP | 72 | 20.0 |
FI-S09IO96CZNPBL | SINGLEMODE OS2 (ITU-T G.657.A1) | PLENUM | OFNP | 96 | 22.9 |
FI-M62IO02C3NRBL44 | 62.5/125 MULTIMODE OM1 | RISER | OFNR | 2 | 4.4 |
FI-M62IO04C3NRBL44 | 62.5/125 MULTIMODE OM1 | RISER | OFNR | 4 | 4.4 |
FI-M62IO06C3NRBL48 | 62.5/125 MULTIMODE OM1 | RISER | OFNR | 6 | 4.8 |
| FI-M62IO08C3NRBL58 | 62.5/125 MULTIMODE OM1 | RISER | OFNR | 8 | 5.8 |
FI-M62IO12C3NRBL58 | 62.5/125 MULTIMODE OM1 | RISER | OFNR | 12 | 5.8 |
| FI-M62IO24C3NRBL78 | 62.5/125 MULTIMODE OM1 | RISER | OFNR | 24 | 7.8 |
FI-M62IO48C3NRBL | 62.5/125 MULTIMODE OM1 | RISER | OFNR | 48 | 15.4 |
FI-M62IO72C3NRBL | 62.5/125 MULTIMODE OM1 | RISER | OFNR | 72 | 20.0 |
FI-M62IO96C3NRBL | 62.5/125 MULTIMODE OM1 | RISER | OFNR | 96 | 22.9 |
FI-M62IO144C3NRBL | 62.5/125 MULTIMODE OM1 | RISER | OFNR | 144 | 25.1 |
FI-M62IO02C3NPBL44 | 62.5/125 MULTIMODE OM1 | PLENUM | OFNP | 2 | 4.4 |
FI-M62IO04C3NPBL44 | 62.5/125 MULTIMODE OM1 | PLENUM | OFNP | 4 | 4.4 |
FI-M62IO06C3NPBL48 | 62.5/125 MULTIMODE OM1 | PLENUM | OFNP | 6 | 4.8 |
FI-M62IO08C3NPBL58 | 62.5/125 MULTIMODE OM1 | PLENUM | OFNP | 8 | 5.8 |
FI-M62IO12C3NPBL58 | 62.5/125 MULTIMODE OM1 | PLENUM | OFNP | 12 | 5.8 |
| FI-M62IO24C3NPBL78 | 62.5/125 MULTIMODE OM1 | PLENUM | OFNP | 24 | 7.8 |
FI-M62IO48C3NPBL | 62.5/125 MULTIMODE OM1 | PLENUM | OFNP | 48 | 15.4 |
FI-M62IO72C3NPBL | 62.5/125 MULTIMODE OM1 | PLENUM | OFNP | 72 | 20.0 |
FI-M62IO96C3NPBL | 62.5/125 MULTIMODE OM1 | PLENUM | OFNP | 96 | 22.9 |
FI-M50IO02CGNRBL44 | 50/125 MULTIMODE OM3 | RISER | OFNR | 2 | 4.4 |
FI-M50IO04CGNRBL44 | 50/125 MULTIMODE OM3 | RISER | OFNR | 4 | 4.4 |
FI-M50IO06CGNRBL48 | 50/125 MULTIMODE OM3 | RISER | OFNR | 6 | 4.8 |
FI-M50IO08CGNRBL58 | 50/125 MULTIMODE OM3 | RISER | OFNR | 8 | 5.8 |
FI-M50IO12CGNRBL78 | 50/125 MULTIMODE OM3 | RISER | OFNR | 12 | 5.8 |
FI-M50IO24CGNRBL78 | 50/125 MULTIMODE OM3 | RISER | OFNR | 24 | 7.8 |
FI-M50IO48CGNRBL | 50/125 MULTIMODE OM3 | RISER | OFNR | 48 | 15.4 |
FI-M50IO72CGNRBL | 50/125 MULTIMODE OM3 | RISER | OFNR | 72 | 20.0 |
FI-M50IO96CGNRBL | 50/125 MULTIMODE OM3 | RISER | OFNR | 96 | 22.9 |
FI-M50IO144CGNRBL | 50/125 MULTIMODE OM3 | RISER | OFNR | 144 | 25.1 |
FI-M50IO02CGNPBL44 | 50/125 MULTIMODE OM3 | PLENUM | OFNP | 2 | 4.4 |
FI-M50IO04CGNPBL44 | 50/125 MULTIMODE OM3 | PLENUM | OFNP | 4 | 4.4 |
FI-M50IO06CGNPBL48 | 50/125 MULTIMODE OM3 | PLENUM | OFNP | 6 | 4.8 |
| FI-M50IO08CGNPBL58 | 50/125 MULTIMODE OM3 | PLENUM | OFNP | 8 | 5.8 |
FI-M50IO12CGNPBL58 | 50/125 MULTIMODE OM3 | PLENUM | OFNP | 12 | 5.8 |
FI-M50IO24CGNPBL78 | 50/125 MULTIMODE OM3 | PLENUM | OFNP | 24 | 7.8 |
FI-M50IO48CGNPBL | 50/125 MULTIMODE OM3 | PLENUM | OFNP | 48 | 15.4 |
FI-M50IO72CGNPBL | 50/125 MULTIMODE OM3 | PLENUM | OFNP | 72 | 20.0 |
| FI-M50IO96CGNPBL | 50/125 MULTIMODE OM3 | PLENUM | OFNP | 96 | 22.9 |
| FI-M50IO02C4NRBL44 | 50/125 MULTIMODE OM4 | RISER | OFNR | 2 | 4.4 |
| FI-M50IO04C4NRBL44 | 50/125 MULTIMODE OM4 | RISER | OFNR | 4 | 4.4 |
| FI-M50IO06C4NRBL48 | 50/125 MULTIMODE OM4 | RISER | OFNR | 6 | 4.8 |
| FI-M50IO08C4NRBL58 | 50/125 MULTIMODE OM4 | RISER | OFNR | 8 | 5.8 |
| FI-M50IO12C4NRBL58 | 50/125 MULTIMODE OM4 | RISER | OFNR | 12 | 5.8 |
| FI-M50IO24C4NRBL78 | 50/125 MULTIMODE OM4 | RISER | OFNR | 24 | 7.8 |
| FI-M50IO48C4NRBL | 50/125 MULTIMODE OM4 | RISER | OFNR | 48 | 15.4 |
| FI-M50IO72C4NRBL | 50/125 MULTIMODE OM4 | RISER | OFNR | 72 | 20.0 |
| FI-M50IO96C4NRBL | 50/125 MULTIMODE OM4 | RISER | OFNR | 96 | 22.9 |
| FI-M50IO144C4NRBL | 50/125 MULTIMODE OM4 | RISER | OFNR | 144 | 25.1 |
| FI-M50IO02C4NPBL44 | 50/125 MULTIMODE OM4 | PLENUM | OFNP | 2 | 4.4 |
| FI-M50IO04C4NPBL44 | 50/125 MULTIMODE OM4 | PLENUM | OFNP | 4 | 4.4 |
| FI-M50IO06C4NPBL48 | 50/125 MULTIMODE OM4 | PLENUM | OFNP | 6 | 4.8 |
| FI-M50IO08C4NPBL58 | 50/125 MULTIMODE OM4 | PLENUM | OFNP | 8 | 5.8 |
| FI-M50IO12C4NPBL58 | 50/125 MULTIMODE OM4 | PLENUM | OFNP | 12 | 5.8 |
| FI-M50IO24C4NPBL78 | 50/125 MULTIMODE OM4 | PLENUM | OFNP | 24 | 7.8 |
| FI-M50IO48C4NPBL | 50/125 MULTIMODE OM4 | PLENUM | OFNP | 48 | 15.4 |
| FI-M50IO72C4NPBL | 50/125 MULTIMODE OM4 | PLENUM | OFNP | 72 | 20.0 |
| FI-M50IO96C4NPBL | 50/125 MULTIMODE OM4 | PLENUM | OFNP | 96 | 22.9 |
FEATURES:
• 900μm Tight Buffers
• Water blocking aramid yarn strength members
• UV resistant jacket, OFNR and OFNP rated construction
• Exclusive use of Corning® optical fibers
• Jacket print ensures product identification and fiber compatibility
• Buffers strip consistently, helpful for onsite termination
• Durable jacket offers added protection during installation and in rugged use applications
• Applications: General indoor and outdoor use, Between buildings, Underground in a conduit, Duct, General Purpose, Riser, Plenum
• OFNP and OFNR Operating Temperature: -40°C to 70°C
• Also Available: 50/125 MULTIMODE ClearCurve® OM2/OM5, Optical fibers compliant with, ITU-T G.657.A/B standards
Duplex cables are designed for general patch cord production where consistency and uniformity are vital for fast, efficient terminations.
Duplex cables are offered in several outside diameter sizes and meet all tooling and termination requirements.
| Part Number | Type | Fiber Type | Cable Rating | Fiber Count | Nominal Diameter (mm) |
|---|---|---|---|---|---|
| FI-S09DX02CZNPY | 3.0mm Zip |
SM |
OFNP | 2 | 2.95 x 6.1 |
|
FI-S09DX02CZNRY |
3.0mm Zip | SM | OFNR | 2 | 2.95 x 6.1 |
|
FI-M62DX02C3NPO |
3.0mm Zip | OM1 | OFNP | 2 | 2.95 x 6.1 |
|
FI-M62DX02C3NRO |
3.0mm Zip | OM1 | OFNR | 2 | 2.95 x 6.1 |
|
FI-M50DX02CGNPA |
3.0mm Zip | OM3 | OFNP | 2 | 2.95 x 6.1 |
|
FI-M50DX02CGNRA |
3.0mm Zip | OM3 | OFNR | 2 | 2.95 x 6.1 |
|
FI-M50DX02C4NPA |
3.0mm Zip | OM4 | OFNP | 2 | 2.95 x 6.1 |
|
FI-M50DX02C4NRA |
3.0mm Zip | OM4 | OFNP | 2 | 2.95 x 6.1 |
|
FI-M50DX02C5NPLG |
3.0mm Zip | OM5 | OFNP | 2 | 2.95 x 6.1 |
|
FI-M50DX02C5NRLG |
3.0mm Zip | OM5 | OFNR | 2 | 2.95 x 6.1 |
|
FI-S09DX02CZNPY20 |
2.0mm Zip | SM | OFNP | 2 | 1.95 x 4.1 |
|
FI-S09DX02CZNRY20 |
2.0mm Zip | SM | OFNR | 2 | 1.95 x 4.1 |
|
FI-M62DX02C3NPO20 |
2.0mm Zip | OM1 | OFNP | 2 | 1.95 x 4.1 |
|
FI-M62DX02C3NRO20 |
2.0mm Zip | OM1 | OFNR | 2 | 1.95 x 4.1 |
|
FI-M50DX02CGNPA20 |
2.0mm Zip | OM3 | OFNP | 2 | 1.95 x 4.1 |
|
FI-M50DX02CGNRA20 |
2.0mm Zip | OM3 | OFNR | 2 | 1.95 x 4.1 |
|
FI-M50DX02C4NPA20 |
2.0mm Zip | OM4 | OFNP | 2 | 1.95 x 4.1 |
|
FI-M50DX02C4NRA20 |
2.0mm Zip | OM4 | OFNR | 2 | 1.95 x 4.1 |
|
FI-M50DX02C5NPLG20 |
2.0mm Zip | OM5 | OFNP | 2 | 1.95 x 4.1 |
|
FI-M50DX02C5NRLG20 |
2.0mm Zip | OM5 | OFNR | 2 | 1.95 x 4.1 |
|
FI-S09DX02CZNPY18 |
1.8mm Zip | SM | OFNP | 2 | 1.80 x 3.7 |
|
FI-S09DX02CZNRY18 |
1.8mm Zip | SM | OFNR | 2 | 1.80 x 3.7 |
| FI-M62DX02C3NPO18 | 1.8mm Zip | SM | OFNP | 2 | 1.80 x 3.7 |
|
FI-M50DX02CGNPA18 |
1.8mm Zip | OM3 | OFNP | 2 | 1.80 x 3.7 |
| FI-M50DX02CGNRA18 | 1.8mm Zip | OM3 | OFNR | 2 | 1.80 x 3.7 |
|
FI-M50DX02C4NPA18 |
1.8mm Zip | OM4 | OFNP | 2 | 1.80 x 3.7 |
|
FI-M50DX02C4NRA18 |
1.8mm Zip | OM4 | OFNR | 2 | 1.80 x 3.7 |
|
FI-M50DX02C5NPLG18 |
1.8mm Zip | OM5 | OFNP | 2 | 1.80 x 3.7 |
|
FI-M50DX02C5NRLG18 |
1.8mm Zip | OM5 | OFNR | 2 | 1.80 x 3.7 |
|
FI-S09DX02CZNPY16 |
1.6mm Zip | SM | OFNP | 2 | 1.60 x 3.3 |
|
FI-S09DX02CZNRY16 |
1.6mm Zip | SM | OFNR | 2 | 1.60 x 3.3 |
|
FI-M62DX02C3NPO16 |
1.6mm Zip | OM1 | OFNP | 2 | 1.60 x 3.3 |
|
FI-M62DX02C3NRO16 |
1.6mm Zip | OM1 | OFNR | 2 | 1.60 x 3.3 |
|
FI-M50DX02CGNPA16 |
1.6mm Zip | OM3 | OFNP | 2 | 1.60 x 3.3 |
| FI-M50DX02CGNRA16 | 1.6mm Zip | OM3 | OFNR | 2 | 1.60 x 3.3 |
|
FI-M50DX02C4NPA16 |
1.6mm Zip | OM4 | OFNP | 2 | 1.60 x 3.3 |
|
FI-M50DX02C4NRA16 |
1.6mm Zip | OM4 | OFNR | 2 | 1.60 x 3.3 |
|
FI-M50DX02C5NPLG16 |
1.6mm Zip | OM5 | OFNP | 2 | 1.60 x 3.3 |
|
FI-M50DX02C5NRLG16 |
1.6mm Zip | OM5 | OFNR | 2 | 1.60 x 3.3 |
|
FI-S09DX02CZNPY12 |
1.2mm Zip | SM | OFNP | 2 | 1.20 x 2.45 |
|
FI-M62DX02C3NPO12 |
1.2mm Zip | OM1 | OFNP | 2 | 1.20 x 2.45 |
|
FI-M50DX02CGNPA12 |
1.2mm Zip | OM3 | OFNP | 2 | 1.20 x 2.45 |
|
FI-M50DX02C4NPA12 |
1.2mm Zip | OM4 | OFNP | 2 | 1.20 x 2.45 |
|
FI-M50DX02C5NPLG12 |
1.2mm Zip | OM4 | OFNP | 2 | 1.20 x 2.45 |
|
FI-S09RX02CZNPY |
3.0mm Round Duplex | SM | OFNP | 2 | 2.85 |
|
FI-S09RX02CZNRY |
3.0mm Round Duplex | SM | OFNR | 2 | 2.85 |
|
FI-M62RX02C3NPO |
3.0mm Round Duplex | OM1 | OFNP | 2 | 2.85 |
|
FI-M62RX02C3NRO |
3.0mm Round Duplex | OM1 | OFNR | 2 | 2.85 |
|
FI-M50RX02CGNPA |
3.0mm Round Duplex | OM3 | OFNP | 2 | 2.85 |
|
FI-M50RX02CGNRA |
3.0mm Round Duplex | OM3 | OFNR | 2 | 2.85 |
|
FI-M50RX02C4NPA |
3.0mm Round Duplex | OM4 | OFNP | 2 | 2.85 |
| FI-M50RX02C4NRA | 3.0mm Round Duplex | OM4 | OFNR | 2 | 2.85 |
|
FI-M50RX02C5NPLG |
3.0mm Round Duplex | OM5 | OFNP | 2 | 2.85 |
FEATURES:
• 3mm, 2mm, 1.8mm, 1.6mm and 1.2mm OD sizes meet all patch cord applications
• Easy strip-ability of tight buffer
• Applications: Patch cord production, Data centers, Indoor point to point connections, Riser, and Plenum
• OFNP Operating Temp: 0°C to 70°C, OFNR Operating Temp: -20°C to 70°C
• Also available: LSZH Jacket, 50/125 MULTIMODE, ClearCurve® OM2, Optical fibers compliant with ITU-T G.657.A/B standards
Simplex Cables are designed for general patch cord production where consistency and uniformity are vital for fast efficient terminations.
Simplex cables are offered in several outside diameter sizes to meet all tooling and termination requirements.
| Part Number | Type | Fiber Type | Cable Rating | Fiber Count | Nominal Diameter (mm) |
|---|---|---|---|---|---|
| FI-S09SX01CZNPY | 3.0mm |
SM |
OFNP | 1 | 2.95 |
|
FI-S09SX01CZNRY |
3.0mm | SM | OFNR | 1 | 2.95 |
|
FI-M62SX01C3NPO |
3.0mm | OM1 | OFNP | 1 | 2.95 |
|
FI-M62SX01C3NRO |
3.0mm | OM1 | OFNR | 1 | 2.95 |
|
FI-M50SX01CGNPA |
3.0mm | OM3 | OFNP | 1 | 2.95 |
|
FI-M50SX01CGNRA |
3.0mm | OM3 | OFNR | 1 | 2.95 |
|
FI-M50SX01C4NPA |
3.0mm | OM4 | OFNP | 1 | 2.95 |
|
FI-M50SX01C4NRA |
3.0mm | OM4 | OFNR | 1 | 2.95 |
|
FI-M50SX01C5NPLG |
3.0mm | OM5 | OFNP | 1 | 2.95 |
|
FI-M50SX01C5NRLG |
3.0mm | OM5 | OFNR | 1 | 2.95 |
|
FI-S09SX01CZNPY20 |
2.0mm | SM | OFNP | 1 | 1.95 |
|
FI-S09SX01CZNRY20 |
2.0mm | SM | OFNR | 1 | 1.95 |
|
FI-M62SX01C3NPO20 |
2.0mm | OM1 | OFNP | 1 | 1.95 |
|
FI-M62SX01C3NRO20 |
2.0mm | OM1 | OFNR | 1 | 1.95 |
|
FI-M50SX01CGNPA20 |
2.0mm | OM3 | OFNP | 1 | 1.95 |
|
FI-M50SX01CGNRA20 |
2.0mm | OM3 | OFNR | 1 | 1.95 |
|
FI-M50SX01C4NPA20 |
2.0mm | OM4 | OFNP | 1 | 1.95 |
|
FI-M50SX01C4NRA20 |
2.0mm | OM4 | OFNR | 1 | 1.95 |
|
FI-M50SX01C5NPLG20 |
2.0mm | OM5 | OFNP | 1 | 1.95 |
|
FI-M50SX01C5NRLG20 |
2.0mm | OM5 | OFNR | 1 | 1.95 |
|
FI-S09SX01CZNPY18 |
1.8mm | SM | OFNP | 1 | 1.95 |
|
FI-S09SX01CZNRY18 |
1.8mm | SM | OFNR | 1 | 1.80 |
| FI-M62SX01C3NPO18 | 1.8mm | OM1 | OFNP | 1 | 1.80 |
|
FI-M62SX01C3NRO18 |
1.8mm | OM1 | OFNR | 1 | 1.80 |
| FI-M50SX01CGNPA18 | 1.8mm | OM3 | OFNP | 1 | 1.80 |
|
FI-M50SX01CGNRA18 |
1.8mm | OM3 | OFNR | 1 | 1.80 |
|
FI-M50SX01C4NPA18 |
1.8mm | OM4 | OFNP | 1 | 1.80 |
|
FI-M50SX01C4NRA18 |
1.8mm | OM4 | OFNR | 1 | 1.80 |
|
FI-M50SX01C5NPLG18 |
1.8mm | OM5 | OFNP | 1 | 1.80 |
|
FI-M50SX01C5NRLG18 |
1.8mm | OM5 | OFNR | 1 | 1.80 |
|
FI-S09SX01CZNPY16 |
1.6mm | SM | OFNP | 1 | 1.60 |
|
FI-S09SX01CZNRY16 |
1.6mm | SM | OFNR | 1 | 1.60 |
|
FI-M62SX01C3NPO16 |
1.6mm | OM1 | OFNP | 1 | 1.60 |
|
FI-M62SX01C3NRO16 |
1.6mm | OM1 | OFNR | 1 | 1.60 |
| FI-M50SX01CGNPA16 | 1.6mm | OM3 | OFNP | 1 | 1.60 |
|
FI-M50SX01CGNRA16 |
1.6mm | OM3 | OFNR | 1 | 1.60 |
|
FI-M50SX01C4NPA16 |
1.6mm | OM4 | OFNP | 1 | 1.60 |
|
FI-M50SX01C4NRA16 |
1.6mm | OM4 | OFNR | 1 | 1.60 |
|
FI-M50SX01C5NPLG16 |
1.6mm | OM5 | OFNP | 1 | 1.60 |
|
FI-M50SX01C5NRLG16 |
1.6mm | OM5 | OFNR | 1 | 1.60 |
|
FI-S09SX01CZNPY12 |
1.2mm | SM | OFNP | 1 | 1.20 |
|
FI-M62SX01C3NPO12 |
1.2mm | OM1 | OFNP | 1 | 1.20 |
|
FI-M50SX01CGNPO12 |
1.2mm | OM3 | OFNP | 1 | 1.20 |
|
FI-M50SX01C4NPA12 |
1.2mm | OM4 | OFNP | 1 | 1.20 |
|
FI-M50SX01C5NPLG12 |
1.2mm | OM5 | OFNR | 1 | 1.20 |
FEATURES:
• 3mm, 2mm, 1.8mm, 1.6mm and 1.2mm OD sizes meet all patch cord applications
• Easy strip-ability of tight buffer
• Applications: Patch cord production, Data centers, Indoor point to point connections, Riser, Plenum
• OFNP Operating Temp: 0°C to 70°C, OFNR Operating Temp: -20°C to 70°C
• Also available: LSZH Jacket, 50/125 MULTIMODE ClearCurve® OM2, Optical fibers compliant with ITU-T G.657.A/B standards
Breakout cable consists of 2mm subunits (other sizes available) with 900μm tight buffers. Combining strength, flexibility and no need for fan-out kits or tubing when terminating, these rugged cables are ideal for indoor and indoor/outdoor applications.
We offer Breakout cables from 2-18 fiber constructions with OFNR and OFNP ratings.
| Part Number | Type | Application | Cable Rating | Fiber Count | Nominal Diameter (mm) |
|---|---|---|---|---|---|
| FI-S09BK02CZNRY20-Y | SINGLEMODE OS2 (ITU-T G.657.A1) |
RISER |
OFNR | 2 | 8.8 |
|
FI-S09BK04CZNRY20-Y |
SINGLEMODE OS2 (ITU-T G.657.A1) |
RISER | OFNR | 4 | 8.8 |
|
FI-S09BK06CZNRY20-Y |
SINGLEMODE OS2 (ITU-T G.657.A1) |
RISER | OFNR | 6 | 9.0 |
|
FI-S09BK08CZNRY20-Y |
SINGLEMODE OS2 (ITU-T G.657.A1) |
RISER | OFNR | 8 | 9.6 |
|
FI-S09BK12CZNRY20-Y |
SINGLEMODE OS2 (ITU-T G.657.A1) |
RISER | OFNR | 12 | 10.7 |
|
FI-S09BK18CZNRY20-Y |
SINGLEMODE OS2 (ITU-T G.657.A1) |
RISER | OFNR | 18 | 12.8 |
|
FI-S09BK02CZNPY20-Y |
SINGLEMODE OS2 (ITU-T G.657.A1) |
PLENUM | OFNP | 2 | 8.8 |
|
FI-S09BK04CZNPY20-Y |
SINGLEMODE OS2 (ITU-T G.657.A1) |
PLENUM | OFNP | 4 | 8.8 |
|
FI-S09BK06CZNPY20-Y |
SINGLEMODE OS2 (ITU-T G.657.A1) |
PLENUM | OFNP | 6 | 9.0 |
|
FI-S09BK08CZNPY20-Y |
SINGLEMODE OS2 (ITU-T G.657.A1) |
PLENUM | OFNP | 8 | 9.6 |
|
FI-S09BK12CZNPY20-Y |
SINGLEMODE OS2 (ITU-T G.657.A1) |
PLENUM | OFNP | 12 | 10.7 |
|
FI-M62BK02C3NRO20-O |
62.5/125 MULTIMODE OM1 | RISER | OFNP | 2 | 8.8 |
|
FI-M62BK04C3NRO20-O |
62.5/125 MULTIMODE OM1 | RISER | OFNP | 4 | 8.8 |
|
FI-M62BK06C3NRO20-O |
62.5/125 MULTIMODE OM1 | RISER | OFNP | 6 | 9.0 |
|
FI-M62BK08C3NRO20-O |
62.5/125 MULTIMODE OM1 | RISER | OFNR | 8 | 9.6 |
|
FI-M62BK12C3NRO20-O |
62.5/125 MULTIMODE OM1 | RISER | OFNR | 12 | 10.7 |
|
FI-M62BK18C3NRO20-O |
62.5/125 MULTIMODE OM1 | RISER | OFNR | 18 | 12.8 |
|
FI-M62BK02C3NPO20-O |
62.5/125 MULTIMODE OM1 | PLENUM | OFNP | 2 | 8.8 |
|
FI-M62BK04C3NPO20-O |
62.5/125 MULTIMODE OM1 | PLENUM | OFNP | 4 | 8.8 |
|
FI-M62BK06C3NPO20-O |
62.5/125 MULTIMODE OM1 | PLENUM | OFNP | 6 | 9.0 |
|
FI-M62BK08C3NPO20-O |
62.5/125 MULTIMODE OM1 | PLENUM | OFNP | 8 | 9.6 |
|
FI-M62BK12C3NPO20-O |
62.5/125 MULTIMODE OM1 | PLENUM | OFNP | 12 | 10.7 |
| FI-M50BK02CGNRA20-A | 50/125 MULTIMODE OM3 | RISER | OFNR | 2 | 8.8 |
|
FI-M50BK04CGNRA20-A |
50/125 MULTIMODE OM3 | RISER | OFNR | 4 | 8.8 |
| FI-M50BK06CGNRA20-A | 50/125 MULTIMODE OM3 | RISER | OFNR | 6 | 9.0 |
|
FI-M50BK08CGNRA20-A |
50/125 MULTIMODE OM3 | RISER | OFNR | 8 | 9.6 |
|
FI-M50BK12CGNRA20-A |
50/125 MULTIMODE OM3 | RISER | OFNR | 12 | 10.7 |
|
FI-M50BK18CGNRA20-A |
50/125 MULTIMODE OM3 | RISER | OFNR | 18 | 12.7 |
|
FI-M50BK02CGNPA20-A |
50/125 MULTIMODE OM3 | PLENUM | OFNP | 2 | 8.8 |
|
FI-M50BK04CGNPA20-A |
50/125 MULTIMODE OM3 | PLENUM | OFNP | 4 | 8.8 |
|
FI-M50BK06CGNPA20-A |
50/125 MULTIMODE OM3 | PLENUM | OFNP | 6 | 9.0 |
|
FI-M50BK08CGNPA20-A |
50/125 MULTIMODE OM3 | PLENUM | OFNP | 8 | 9.6 |
|
FI-M50BK12CGNPA20-A |
50/125 MULTIMODE OM3 | PLENUM | OFNP | 12 | 10.7 |
|
FI-M50BK02C4NRA20-A |
50/125 MULTIMODE OM4 | RISER | OFNR | 2 | 8.8 |
| FI-M50BK04C4NRA20-A | 50/125 MULTIMODE OM4 | RISER | OFNR | 4 | 8.8 |
|
FI-M50BK06C4NRA20-A |
50/125 MULTIMODE OM4 | RISER | OFNR | 6 | 9.0 |
|
FI-M50BK08C4NRA20-A |
50/125 MULTIMODE OM4 | RISER | OFNR | 8 | 9.6 |
|
FI-M50BK12C4NRA20-A |
50/125 MULTIMODE OM4 | RISER | OFNR | 12 | 10.7 |
|
FI-M50BK18C4NRA20-A |
50/125 MULTIMODE OM4 | RISER | OFNR | 18 | 12.7 |
|
FI-M50BK02C4NPA20-A |
50/125 MULTIMODE OM4 | PLENUM | OFNP | 2 | 8.8 |
|
FI-M50BK04C4NPA20-A |
50/125 MULTIMODE OM4 | PLENUM | OFNP | 4 | 8.8 |
|
FI-M50BK06C4NPA20-A |
50/125 MULTIMODE OM4 | PLENUM | OFNP | 6 | 9.0 |
|
FI-M50BK08C4NPA20-A |
50/125 MULTIMODE OM4 | PLENUM | OFNP | 8 | 9.6 |
|
FI-M50BK12C4NPA20-A |
50/125 MULTIMODE OM4 | PLENUM | OFNP | 12 | 10.7 |
FEATURES:
• 2.0mm sub-units
• 900um tight buffered
• Flame Ratings – UL1666 (Riser) and NFPA262 (Plenum).
• Available in all fiber types
• Available in both Riser or Plenum ratings
• Color coded sub-units available as requested
• Meets the application requirement of National Electric Code (NEC) Article 770 and are OFNP and OFNR listed.
• Applications: Office Cabling, Computer room, Riser, Plenum
• OFNP Operating Temp: 0°C to 70°C, OFNR Operating Temp: -20°C to 70°C
• Also available: 50/125 MULTIMODE, ClearCurve® OM2/OM5, Optical fibers compliant with ITU-T G.657.A/B standards.
• LSZH Jacket, Indoor/Outdoor Breakout
Flat ribbon cable is compatible with the current industry tools and termination products (mainly MTP and MPO connectors).
In OFNR and OFNP constructions as well as a LSZH jacket, we offer fiber counts from 2-12. Unrated bare ribbon fiber also available.
| Part Number | Family | Application | Cable Rating | Fiber Count | Nominal Diameter (mm) |
|---|---|---|---|---|---|
| FI-S09RB04CZNRY | SINGLEMODE OS2 (ITU-T G.657.A1) | RISER | OFNR | 4 | 2.35 |
FI-S09RB06CZNRY | SINGLEMODE OS2 (ITU-T G.657.A1) | RISER | OFNR | 6 | 2.35 |
FI-S09RB08CZNRY | SINGLEMODE OS2 (ITU-T G.657.A1) | RISER | OFNR | 8 | 2.35 |
FI-S09RB12CZNRY | SINGLEMODE OS2 (ITU-T G.657.A1) | RISER | OFNR | 12 | 2.35 |
FI-S09RB04CZNPY | SINGLEMODE OS2 (ITU-T G.657.A1) | PLENUM | OFNP | 4 | 2.35 |
FI-S09RB06CZNPY | SINGLEMODE OS2 (ITU-T G.657.A1) | PLENUM | OFNP | 6 | 2.35 |
FI-S09RB08CZNPY | SINGLEMODE OS2 (ITU-T G.657.A1) | PLENUM | OFNP | 8 | 2.35 |
FI-S09RB12CZNPY | SINGLEMODE OS2 (ITU-T G.657.A1) | PLENUM | OFNP | 12 | 2.35 |
FI-M62RB04C3NRO | 62.5/125 MULTIMODE OM1 | RISER | OFNR | 4 | 2.35 |
FI-M62RB06C3NRO | 62.5/125 MULTIMODE OM1 | RISER | OFNR | 6 | 2.35 |
FI-M62RB08C3NRO | 62.5/125 MULTIMODE OM1 | RISER | OFNR | 8 | 2.35 |
FI-M62RB12C3NRO | 62.5/125 MULTIMODE OM1 | RISER | OFNR | 12 | 2.35 |
FI-M62RB04C3NPO | 62.5/125 MULTIMODE OM1 | PLENUM | OFNP | 4 | 2.35 |
FI-M62RB06C3NPO | 62.5/125 MULTIMODE OM1 | PLENUM | OFNP | 6 | 2.35 |
FI-M62RB08C3NPO | 62.5/125 MULTIMODE OM1 | PLENUM | OFNP | 8 | 2.35 |
FI-M62RB12C3NPO | 62.5/125 MULTIMODE OM1 | PLENUM | OFNP | 12 | 2.35 |
FI-M50RB04CGNRA | 50/125 MULTIMODE OM3 | RISER | OFNR | 4 | 2.35 |
FI-M50RB06CGNRA | 50/125 MULTIMODE OM3 | RISER | OFNR | 6 | 2.35 |
FI-M50RB08CGNRA | 50/125 MULTIMODE OM3 | RISER | OFNR | 8 | 2.35 |
FI-M50RB12CGNRA | 50/125 MULTIMODE OM3 | RISER | OFNR | 12 | 2.35 |
FI-M50RB04CGNPA | 50/125 MULTIMODE OM3 | PLENUM | OFNP | 4 | 2.35 |
FI-M50RB06CGNPA | 50/125 MULTIMODE OM3 | PLENUM | OFNP | 6 | 2.35 |
| FI-M50RB08CGNPA | 50/125 MULTIMODE OM3 | PLENUM | OFNP | 8 | 2.35 |
FI-M50RB12CGNPA | 50/125 MULTIMODE OM3 | PLENUM | OFNP | 12 | 2.35 |
| FI-M50RB04C4NRA | 50/125 MULTIMODE OM4 | RISER | OFNR | 4 | 2.35 |
FI-M50RB06C4NRA | 50/125 MULTIMODE OM4 | RISER | OFNR | 6 | 2.35 |
FI-M50RB08C4NRA | 50/125 MULTIMODE OM4 | RISER | OFNR | 8 | 2.35 |
FI-M50RB12C4NRA | 50/125 MULTIMODE OM4 | RISER | OFNR | 12 | 2.35 |
FI-M50RB04C4NPA | 50/125 MULTIMODE OM4 | PLENUM | OFNP | 4 | 2.35 |
FI-M50RB06C4NPA | 50/125 MULTIMODE OM4 | PLENUM | OFNP | 6 | 2.35 |
FI-M50RB08C4NPA | 50/125 MULTIMODE OM4 | PLENUM | OFNP | 8 | 2.35 |
FI-M50RB12C4NPA | 50/125 MULTIMODE OM4 | PLENUM | OFNP | 12 | 2.35 |
FI-M50RB04C5NRLG | 50/125 MULTIMODE OM5 | RISER | OFNR | 4 | 2.35 |
| FI-M50RB06C5NRLG | 50/125 MULTIMODE OM5 | RISER | OFNR | 6 | 2.35 |
FI-M50RB08C5NRLG | 50/125 MULTIMODE OM5 | RISER | OFNR | 8 | 2.35 |
FI-M50RB12C5NRLG | 50/125 MULTIMODE OM5 | RISER | OFNR | 12 | 2.35 |
FI-M50RB04C5NPLG | 50/125 MULTIMODE OM5 | PLENUM | OFNP | 4 | 2.35 |
FI-M50RB06C5NPLG | 50/125 MULTIMODE OM5 | PLENUM | OFNP | 6 | 2.35 |
FI-M50RB08C5NPLG | 50/125 MULTIMODE OM5 | PLENUM | OFNP | 8 | 9.6 |
FI-M50RB12C5NPLG | 50/125 MULTIMODE OM5 | PLENUM | OFNP | 12 | 10.7 |
FEATURES:
• Aramid strength member
• Standard count is 12 fiber with other counts available
• Compatible with all the current industry termination products
• Bare ribbon fiber also available
• Fan-Out Kits are available
• Applications: Data Centers, Computer rooms and closets, Commonly used with MTP or MPO connectors, High density areas where space are at premium
• OFNP Operating Temp: 0oC to 70oC, OFNR Operating Temp: -20oC to 70oC
• Also available: Optical fibers compliant with ITU-T G.657.A/B standards, 50/125 MULTIMODE ClearCurve® OM2, LSZH Jacket, Bare Ribbon Fiber, 2 fiber Ribbon Cable

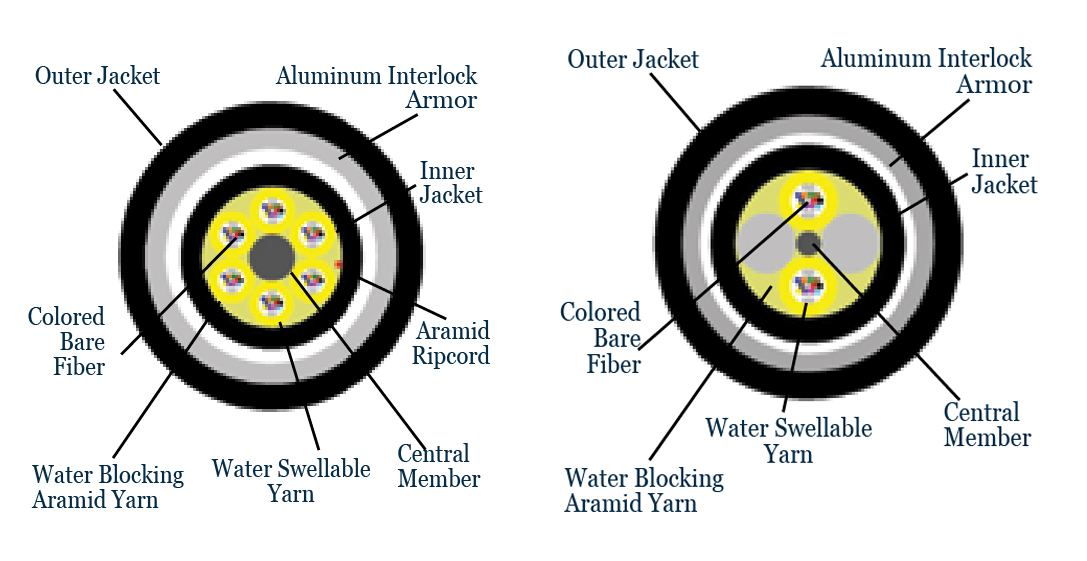

Interlocking Armored Cables are standard cables inside a spirally wrapped aluminum strip for enhanced crush resistance and ruggedness.
Available in Riser and Plenum rated constructions, interlocking armor can be used for general inside plant or indoor / outdoor applications in place of a conduit.
INDOOR MICRO – DISTRIBUTION CABLE DATA:
| Part Number | TYPE | Application | Fiber Count | Nominal Diameter (mm) |
|---|---|---|---|---|
| FI-S09DL06CZNRBL25-AIA2 | SINGLEMODE OS2 (ITU-T G.657.A1) | RISER | 12 | 11.60 |
FI-S09MD24CZNRY-Y-AIA2 | SINGLEMODE OS2 (ITU-T G.657.A1) | RISER | 24 | 16.20 |
FI-S09MD48CZNRY4T-Y-AIA2 | SINGLEMODE OS2 (ITU-T G.657.A1) | RISER | 48 | 16.20 |
FI-S09MD72CZNRY6T-Y-AIA | SINGLEMODE OS2 (ITU-T G.657.A1) | RISER | 72 | 19.28 |
FI-S09MD12CZNPY-AIA2 | SINGLEMODE OS2 (ITU-T G.657.A1) | PLENUM | 12 | 11.60 |
FI-S09MD24CZNPY-Y-TW-AIA2 | SINGLEMODE OS2 (ITU-T G.657.A1) | PLENUM | 24 | 16.20 |
FI-S09MD48CZNPY4T-Y-AIA2 | SINGLEMODE OS2 (ITU-T G.657.A1) | PLENUM | 48 | 16.20 |
FI-S09MD72CZNPY6T-Y-AIA | SINGLEMODE OS2 (ITU-T G.657.A1) | PLENUM | 72 | 19.28 |
FI-S09MD96CZNPY20-Y-AIA | SINGLEMODE OS2 (ITU-T G.657.A1) | PLENUM | 96 | 17.25 |
FI-S09MD144CZNPY20-Y-AIA | SINGLEMODE OS2 (ITU-T G.657.A1) | PLENUM | 144 | 19.28 |
FI-M50MD12C4NRA-AIA2 | 50/125 MULTIMODE OM4 | RISER | 12 | 11.60 |
FI-M50MD24C4NRA-A-AIA2 | 50/125 MULTIMODE OM4 | RISER | 24 | 11.60 |
FI-M50MD48C4NRA4T-A-AIA2 | 50/125 MULTIMODE OM4 | RISER | 48 | 16.20 |
FI-M50MD72C4NRA6T-A-AIA | 50/125 MULTIMODE OM4 | RISER | 72 | 19.28 |
FI-M50MD12C4NPA-AIA2 | 50/125 MULTIMODE OM4 | PLENUM | 12 | 11.60 |
FI-M50MD24C4NPA-A-TW-AIA2 | 50/125 MULTIMODE OM4 | PLENUM | 24 | 16.20 |
FI-M50MD48C4NPA4T-A-AIA2 | 50/125 MULTIMODE OM4 | PLENUM | 48 | 16.20 |
FI-M50MD72C4NPA6T-A-AIA | 50/125 MULTIMODE OM4 | PLENUM | 72 | 19.28 |
| FI-M50MD96C4NPA20-A-AIA | 50/125 MULTIMODE OM4 | PLENUM | 96 | 17.25 |
FI-M50MD144C4NPA20-A-AIA | 50/125 MULTIMODE OM4 | PLENUM | 144 | 19.28 |
INDOOR DISTRIBUTION CABLE DATA:
| Part Number | TYPE | Application | Fiber Count | Nominal Diameter (mm) |
|---|---|---|---|---|
| FI-S09MD12CZNRY-AIA2 | SINGLEMODE OS2 | RISER | 6 | 13.0 |
FI-S09DI12CZNRY58-AIA2 | SINGLEMODE OS2 | RISER | 12 | 14.7 |
FI-S09DI24CZNRY78-AIA2 | SINGLEMODE OS2 | RISER | 24 | 16.2 |
FI-S09DI48CZNRY-Y-AIA | SINGLEMODE OS2 | RISER | 48 | 25.4 |
FI-S09DI06CZNPY48-AIA2 | SINGLEMODE OS2 | PLENUM | 6 | 13.0 |
FI-S09DI12CZNPY58-AIA2 | SINGLEMODE OS2 | PLENUM | 12 | 14.7 |
FI-S09DI24CZNPY78-AIA2 | SINGLEMODE OS2 | PLENUM | 24 | 16.2 |
FI-S09DI48CZNPY-Y-AIA | SINGLEMODE OS2 | PLENUM | 48 | 25.4 |
FI-M50DI06C4NRA-AIA2 | 50/125 MULTIMODE OM4 | RISER | 6 | 13.0 |
FI-M50DI12C4NRA-AIA2 | 50/125 MULTIMODE OM4 | RISER | 12 | 14.7 |
FI-M50DI24C4NRA-AIA2 | 50/125 MULTIMODE OM4 | RISER | 24 | 16.2 |
FI-M50DI48C4NRA-A-AIA | 50/125 MULTIMODE OM4 | RISER | 48 | 25.4 |
FI-M50DI06C4NPA48-AIA2 | 50/125 MULTIMODE OM4 | PLENUM | 6 | 13.0 |
FI-M50DI12C4NPA58-AIA2 | 50/125 MULTIMODE OM4 | PLENUM | 12 | 14.7 |
FI-M50DI24C4NPA78-AIA2 | 50/125 MULTIMODE OM4 | PLENUM | 24 | 16.2 |
FI-M50DI48C4NPA-A-AIA | 50/125 MULTIMODE OM4 | PLENUM | 48 | 25.2 |
INDOOR/OUTDOOR DRY LOOSE TUBE CABLE DATA:
| Part Number | TYPE | Application | Fiber Count | Nominal Diameter (mm) |
|---|---|---|---|---|
| FI-S09MD12CZNRY-AIA2 | 9/125 SINGLEMODE | RISER | 6 | 13.0 |
FI-S09DL12CZNRBL25-AIA2 | 9/125 SINGLEMODE | RISER | 12 | 13.0 |
FI-S09DL24CZNRBL25-AIA2 | 9/125 SINGLEMODE | RISER | 24 | 16.2 |
FI-S09DL48CZNRBL25-AIA2 | 9/125 SINGLEMODE | RISER | 48 | 16.2 |
FI-S09DL72CZNRBL25-AIA | 9/125 SINGLEMODE | RISER | 72 | 19.4 |
FI-S09DL96CZNRBL25-AIA | 9/125 SINGLEMODE | RISER | 96 | 23.7 |
FI-S09DL144CZNRBL25-AIA | 9/125 SINGLEMODE | RISER | 144 | 23.7 |
FI-S09DL06CZNPBL25-AIA2 | 9/125 SINGLEMODE | PLENUM | 6 | 13.0 |
FI-S09DL12CZNPBL25-AIA2 | 9/125 SINGLEMODE | PLENUM | 12 | 13.0 |
FI-S09DL24CZNPBL25-AIA2 | 9/125 SINGLEMODE | PLENUM | 24 | 16.2 |
FI-S09DL48CZNPBL25-AIA2 | 9/125 SINGLEMODE | PLENUM | 48 | 16.2 |
FI-S09DL72CZNPBL25-AIA | 9/125 SINGLEMODE | PLENUM | 72 | 19.4 |
FI-S09DL72CZNPBL25-AIA | 9/125 SINGLEMODE | PLENUM | 96 | 23.7 |
FI-S09DL144CZNPBL25-AIA | 9/125 SINGLEMODE | PLENUM | 144 | 23.7 |
FEATURES:
• Provides superior crush resistance for added protection
• Eliminates the need for inner duct or conduit thus saving installation time and costs
• OFCR and OFCP ratings allow AIA products to be installed throughout the facility
• Applications: Data Centers, Indoor areas where heavy traffic requires extra protection, Intra building backbones and general purpose, Riser, Plenum, In place of conduit
• Also available: All Corning® Standard Fiber Types, Optical fibers compliant with ITU-T G.657.A/B standards, Other fiber counts, Tight Buffered Indoor/Outdoor
The 1.6mm, 2mm, 3mm, 3.8mm, and 4.8mm furcation tubing consists of an inner tube surrounded by aramid yarn and an overall PVC jacket. 12 standard colors are available. Inner tubes are available in specific sizes to accept either bare or buffered fibers.
The 900μm furcation tubing is a single tube designed specifically for the protection and termination of 250μm bare fiber. 12 standard colors in Hytrel® as well as clear PVC are available.
| Part Number | Description |
|---|---|
| FI-F00FR2NU-X | 2mm – Accepts 900μm tight buffer |
|
FI-F00FR2NU-X-900 |
2mm – Accepts bare fiber |
|
FI-F00FR3NU -X – PS |
3mm – Accepts 900μm tight buffer |
|
FI-F00FR3NU -X-900 |
3mm– Accepts bare fiber |
|
FI-F00FR38NU-X |
3.8mm – Accepts (2) 900μm tight buffers |
|
FI-F00FR900H-X |
900μm – Accepts bare fiber |
FEATURES:
• Accepts either bare fiber or tight buffer
• Provides durable protection when breaking out cables
• Enhanced inner tube protects against crushing and kinking
• Designed for all connector types
• 12 standard colors
• Also available with pull string for 2mm and 3mm furcation tubing
• Applications: Building up or breaking out of cables for termination, Protection of bare fiber or tight buffer, Ideal for adding protection and strength to 250um fibers and 900um tight buffers for direct termination to connectors
• Color coded for easy identification
• Also Available: Duplex Tubing, Ribbon Tubing, LSZH Tubing, 1.6mm Tubing
Individual Tight Buffered fibers are available and are preferred in production environments because of their ease of stripping. 900μm, 800μm and 650μm buffer sizes match existing tooling and fit the vast array of today’s connectors.
12 standard colors are available in all sizes and most fiber types.
| Part Number | Family | Jacket Type | Diameter (mm) |
|---|---|---|---|
| FI-S09TB01CZNU -X | SINGLEMODE OS2 |
PVC |
.90 |
|
FI-M62TB01C3NU -X |
62/125 MULTIMODE OM1 | PVC | .90 |
|
FI-M50TB01C2NU – X |
50/125 MULTIMODE CLEARCURVE® OM2 | PVC | .90 |
|
FI-M50TB01CGNU-X |
50/125 MULTIMODE CLEARCURVE® OM3 | PVC | .90 |
|
FI-M50TB01C4NU – X |
50/125 MULTIMODE CLEARCURVE® OM4 | PVC | .90 |
FEATURES:
• Ease and consistency of stripping
• 3 sizes (900μm, 800μm and 650μm) available
• Available in 12 standard colors
• Compatible with existing tooling and fits vast array of connectors
• Applications: Data centers, Testing environments, Launch (pulse) boxes, Patch cords
• Also Available: Optical fibers compliant with ITU-T G.657.A/B standards, OM5
The 2mm and 3mm Break Out Kits are used for the quick and simple termination of 900μm tight buffer distribution cables. TIA/EIA color coded furcation tubing allows for the easy identification of the tight buffered fibers and the new and improved inner tubes provide excellent protection against kinking when terminating.
| Part Number | Description |
|---|---|
| FI-BOK0640 | 6 Fiber Break Out Kit 3mm Tubes 40 Inch Leads |
|
FI-BOK064020 |
6 Fiber Break Out Kit 2 mm Tubes 40 Inch Leads |
|
FI-BOK1240 |
12 Fiber Break Out Kit 3mm Tubes 40 Inch Leads |
|
FI-BOK124020 |
12 Fiber Break Out Kit 2mm Tubes 40 Inch Leads |
FEATURES:
• Color Coded tubing for easy identification (also available in numbered, same color tubes)
• Saves time and labor costs in the terminating process
• Accepts 900μm tight buffer
• Compatible with most connector styles
• Available with 2mm and 3mm tubing
• Applications: The “build up” or “break out” of 900mm distribution cables for terminating, General indoor use where extra protection is needed, Computer rooms.
• Ideal for adding protection and strength to 250um fibers and 900um tight buffers for direct termination to connectors
Fan Out Kits are designed for the quick and simple termination of loose tube (bare fiber) products. The three unique clips (included) accept different tube sizes including ribbon, 2mm and 3mm.
12 standard colors of the 900μm Hytrel® tubes allow for easy identification of fibers.
| Part Number | Description |
|---|---|
| FI-FOK0425 | 4 Fiber Fan Out Kit with 25 Inch Leads |
FI-FOK0625 | 6 Fiber Fan Out Kit with 25 Inch Leads |
FI-FOK1225 | 12 Fiber Fan Out Kit with 25 Inch Leads |
FI-FOK1236 | 12 Fiber Fan Out Kit with 36 Inch Leads |
FEATURES:
• Color coded tubing for easy identification
• Saves time and labor costs in the terminating process
• Clips included accept ribbon, 2mm and 3mm cables
• Compatible with all connector styles
• Applications: The “build up or “break out” of bare fiber tubes for termination, Quick and easy termination, Durable protection for bare fibers
• Ideal for adding protection and strength to 250um fibers and 900um tight buffers for direct termination to connectors
The Flat Drop Cable is comprised of bare, colored fiber with water blocking aramid inside a dry 2.5mm buffer tube, The UV resistant polyethylene outer jacket encases the buffer tube along with 2 dielectric FRP strength members.
All component materials meet the EU and RoHS Directive standards. These cables are perfect for all your Fiber To The Home needs. Manufactured with dry block technology. We offer 1 through 12 fiber counts.
| Part Number | Family | Fiber Count | Diameter (mm) |
|---|---|---|---|
| FI-S09FD01CZNPEBL | SINGLEMODE OS2 (ITU-T G.657.A1) |
1 |
8.0 / 4.5 |
|
FI-S09FD02CZNPEBL |
SINGLEMODE OS2 (ITU-T G.657.A1) | 2 | 8.0 / 4.5 |
|
FI-S09FD06CZNPEBL |
SINGLEMODE OS2 (ITU-T G.657.A1) | 6 | 8.0 / 4.5 |
|
FI-S09FD12CZNPEBL |
SINGLEMODE OS2 (ITU-T G.657.A1) | 12 | 8.0 / 4.5 |
FEATURES:
• Ease and consistency of stripping
• 3 sizes (900μm, 800μm and 650μm) available
• Available in 12 standard colors
• Compatible with existing tooling and fits vast array of connectors
• Applications: Data centers, Testing environments, Launch (pulse) boxes, Patch cords
• Also Available: Optical fibers compliant with ITU-T G.657.A/B standards, OM5
PROVIDING CABLING AND CONNECTIVITY SOLUTIONS FOR OVER 35 YEARS
